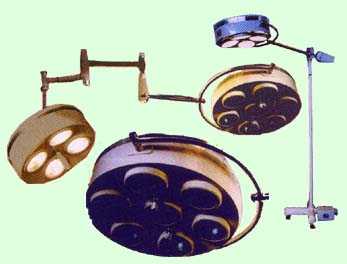

Ultra Modern Halogen
Shadowless Theatre Lights
|
|
|
|
|
|
Common Features |
|
Dome Size |
20" - ( 50 cms ) self
balances spring mechanism. No counter weight balance
|
Reflectors |
6" - ( 15 cms ) dia.,
4 Nos. in each dome
|
Filters |
Imported, toughened, green
tinted glass to absorb heat of ultra violet rays.
|
Vertical Arm |
2' to 2.5' when ceiling
height is 10' - 6" - our standard Deviation - Customised. |
Horizontal Arms |
2.5' and 3.5'. Length
varies with different models. |
Rotational Movements |
180° clockwise &
anticlockwise |
Illuminated Area |
A circle of 6" (15 cms
) - 8" ( 20 cms ) if a distance between the dome and the operation
table is 39" - 42" approx. |
Focus Mechanism |
Incorporated to change the
spot size and its intensity. |
|
Joints & Bearings |
Sturdy joints &
imported thrust bearings - smooth rotation. |
|
Autoclavable Handle |
3.5" long aluminium
handle with clip-on type locking system. Allows lateral and antero-posterior
movement of the dome. |
|
Light Emission |
Approx. - 15000 lux per
6" reflector at the light spot. |
|
Colour Correction Index |
3.5, facilitates to see
true tissue colours. |
|
Shadowfree Level |
No shadow if the head is at
a distance of 18" to 22" from the dome. |
|
Temperature Rise |
2° C in the operation
theater for long hour surgeries. 4°C at the spot site depending upon the
surgery hours. |
|
Bulb Type |
Halogen |
|
Intensity Control |
Separate dimmer
incorporated in heavy duty transformer to control light intensity of each
dome. |
|
Models
|
|
TL-
1010 |
Major
Twin Satellite |
|
TL
- 1020 |
Seven
in One |
|
TL
- 1030 |
Minor
Twin satellite |
|
TL
- 1040 |
Supra
Major Twin Satellite with 2 domes |
|
TL
- 1050 |
Floor
Mobile |
|
TL
- 1060 |
Twin
Offset |
|
TL
- 1070 |
Single
Offset |
